Assemble PC

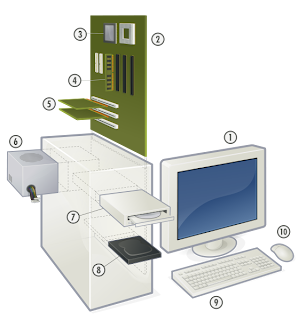

How To Assemble A Desktop PC
Components Procedure

Power Supply (PSU)

Install the power supply into the pc casing. Use the Philips screw driver to put screw for the PSU.

Motherboard
Install the system board.
Connect the system unit with front panel switches and the indicators to the system board. Verify system board jumper & switch setting.

Processor
Install the processor the PGA socket on the motherboard. Beware when pin0in the processor heatsink.

RAM
Install the memory module to the memory slot on motherboard.

Hard Disk
Install hard disk into pc case. Then, connect it with data cable (IDE,SATA) to the motherboard. Connect the hard disk with power cable (molex) from PSU.

Optical Drive
Install the optical drive (DVD Drive or CD Drive) into the pc casing. Then, connect it with data cable (IDE, SATA). Connect it with power cable (molex) from PSU.


Video Card/Graphics Card/GPU
Install the display adapter into the graphics slot (AGP, PCI-E). Then connect the graphics card with the power cable if it need extra power(graphics card requirement)

Keyboard
Connect the keyboard to the PS/2 port at back-side panel of casing.

Mouse
Connect the keyboard to the PS/2 port at back-side panel of casing.

Monitor
Connect the VGA cable from monitor to the graphics card. Then plug the monitor to electric.
Basic tools
Before you begin building or refitting a computer, you will need some basic tools:
1. 2 phillips-head (cross-shaped) screwdriver
2. Needlenose pliers
3. Anti-static Wrist Strap
4. A large level working space
